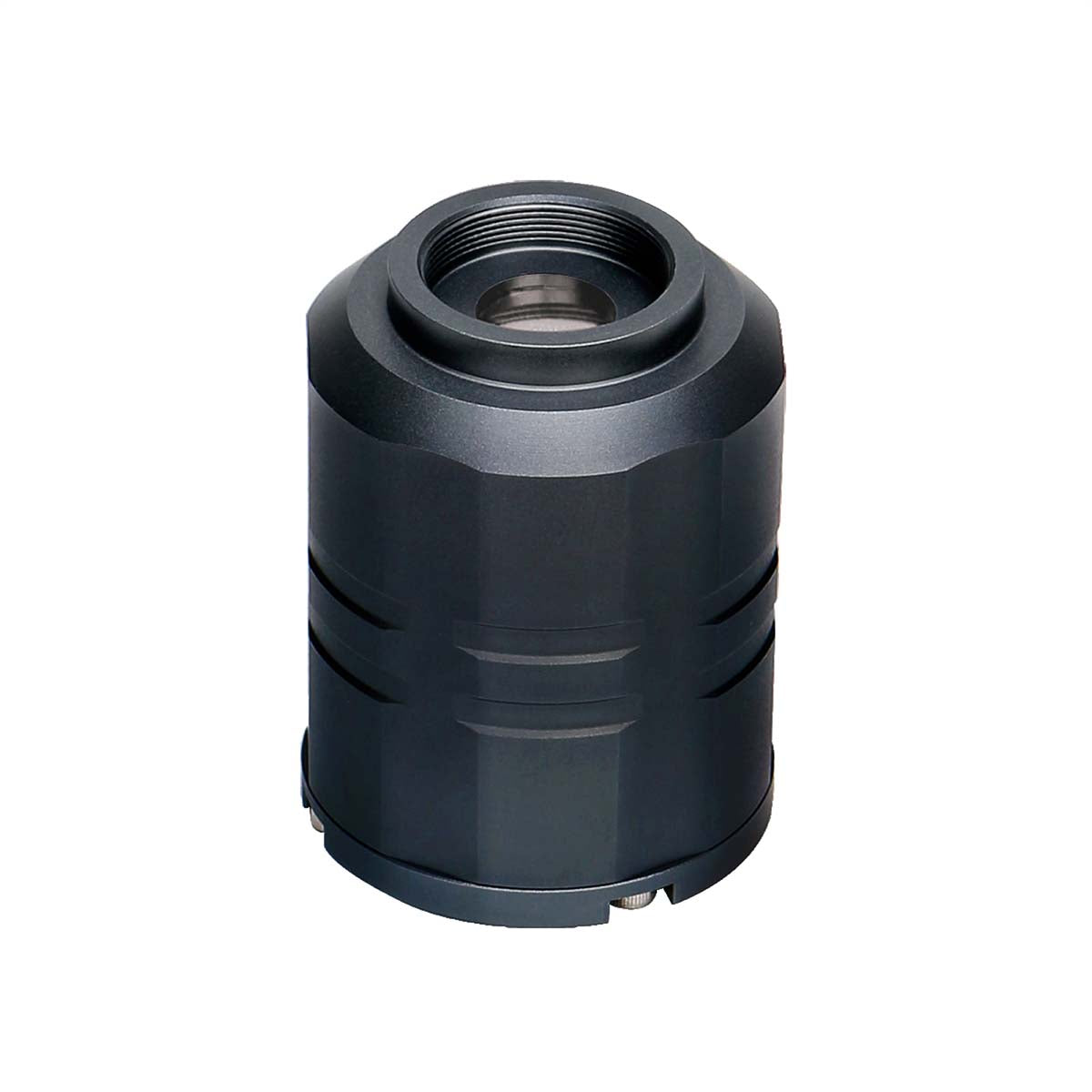

Caméra Monochrome Planétaire SV305M Pro

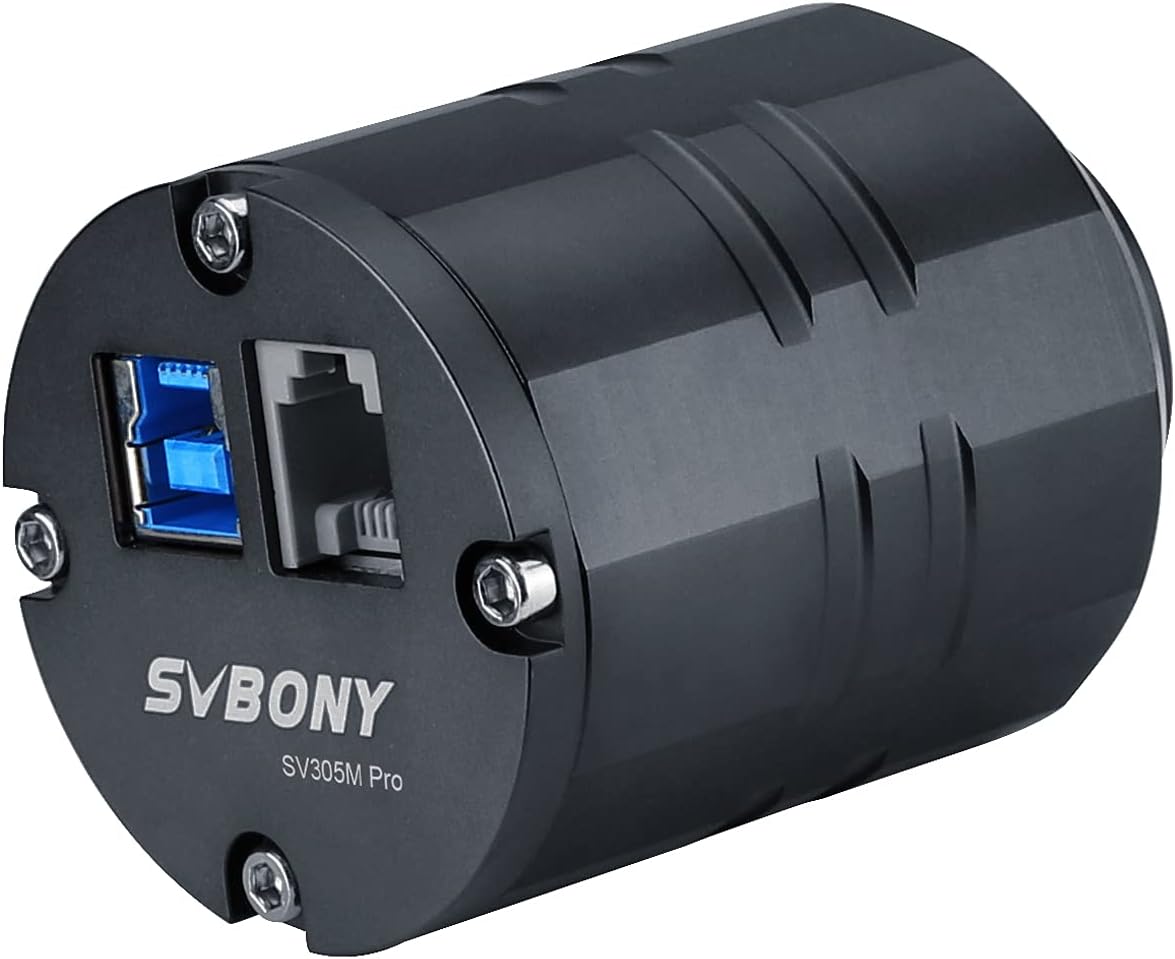

The Svbony SV305M Pro camera is a high-end monochrome planetary camera designed for astrophotography. Using an extremely sensitive CMOS sensor, it is ideal for capturing sharp and detailed images of planets, the moon, and other celestial objects.

Sensitive Monochrome CMOS Sensor:

• Sensor Model: SONY IMX290LLR-C
• Sensor Size: 1/2.8 inches
• Image Resolution: 2M Pixels (1944x1096)
• Pixel Size: 2.9μm x 2.9μm
• Diagonal Size: 6.46mm
• Quantum Efficiency (QE): 80%
• Low Read Noise: 1.0-3.2e
• Anti-Reflection (AR) Coating: Increases sensitivity to visible and near-infrared light

Efficient Data Transfer:

• High-Speed USB 3.0: Ensures fast and efficient data transfer, ideal for planetary and lunar imaging.
• Integrated Image Buffer: 128MB DDRII, allowing for lossless capture even if the USB bus is busy.
• USB 3.0 Cable Length: 2m

Advanced Imaging Functions:

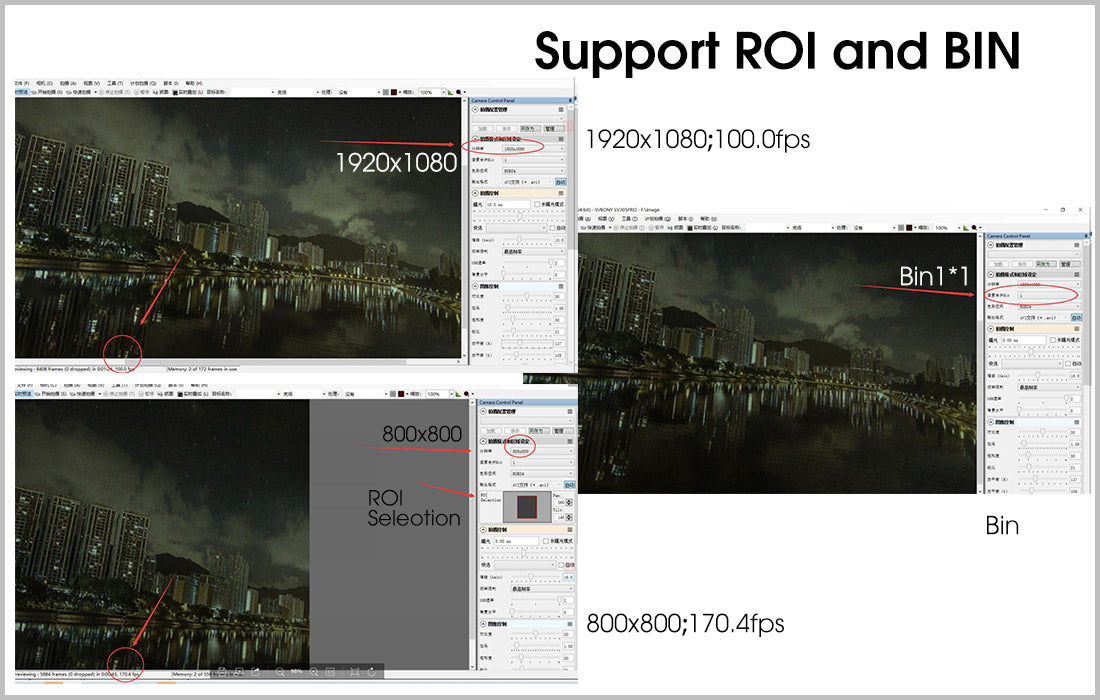

• ROI (Region of Interest) Function: Allows reading a smaller area of the sensor, thus increasing the frame rate of the camera without changing the scale of the object's image.
• BIN (Binning) Function: BIN2x2 can merge two adjacent pixels, thus enhancing the sensitivity of the camera.
• Maximum Frame Rate: 130FPS (1920x1080) / 500FPS (320x240)
• Electronic Shutter: Rolling Shutter with exposure time from 0.03ms to 2000s

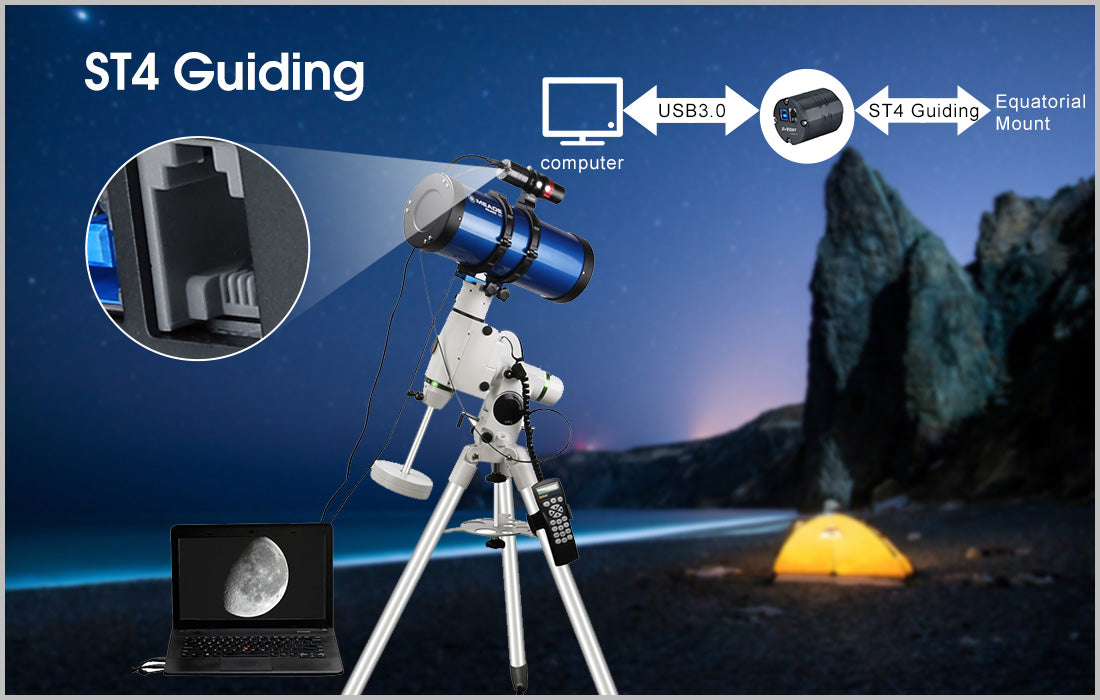

Auto Guiding:

• ST4 Guiding Port: Supported by PHD2 and the ASCOM platform, enabling precise automatic guiding.
• Guiding Cable: 1.5m

System Compatibility:

• Supported Systems: Windows 8.1, Windows 10, Linux, Raspberry Pi, Mac OS

Technical Specifications:

• Exposure: Auto/Manual
• Gain: 1-30 (Auto/Manual)
• ADC: 12 bits
• White Balance Mode: Not applicable
• Operating Humidity: 30%-80%
• Storage Humidity: 20%-90%
• Operating Temperature: -10℃ to +50℃
• Storage Temperature: -20℃ to +60℃
• Net Weight: 135g

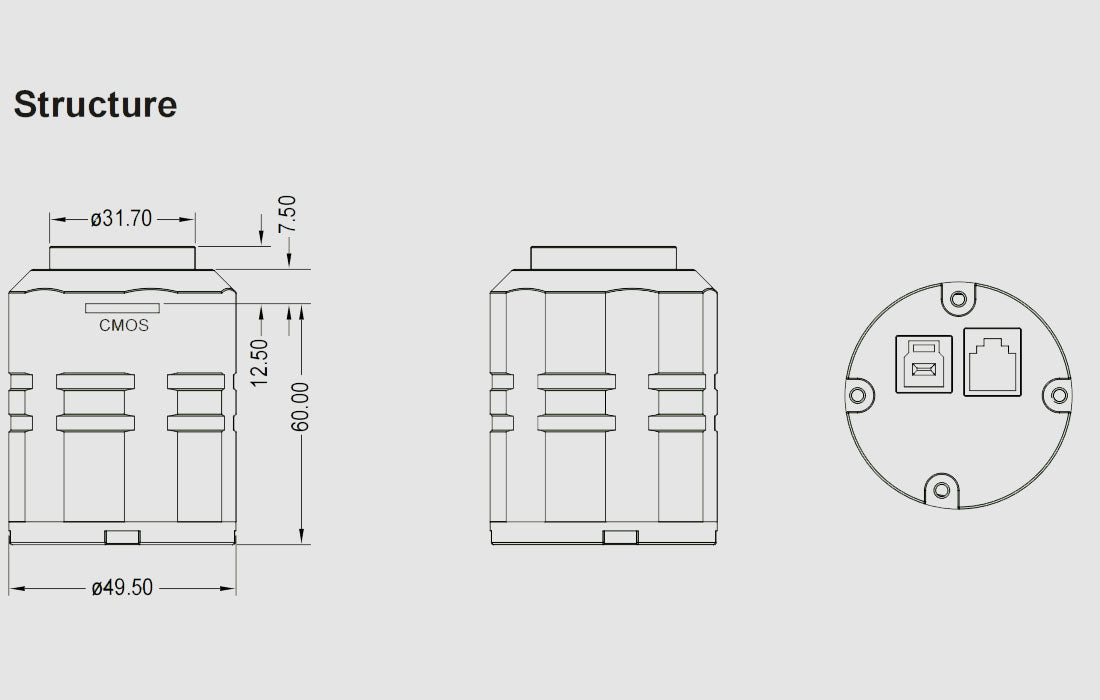

• Product Dimensions: Ø49.5 x 65mm

Advantages:

• High Sensitivity: The IMX290 sensor offers great sensitivity to light and low read noise, ideal for low-light imaging.
• Stable and Reliable: The integrated buffer ensures stable data transmission, even with a slower computer.
• Guiding Features: The ST4 guiding port and compatibility with PHD2 and ASCOM facilitate auto-guiding for accurate shots.
• Ease of Use: Compatibility with multiple operating systems and the USB 3.0 interface make this camera easy to use.

Recommended Applications:

• Planetary Astrophotography: Capture detailed images of planets and the moon.
• Deep Sky Imaging: Use advanced functions to image more distant celestial objects.

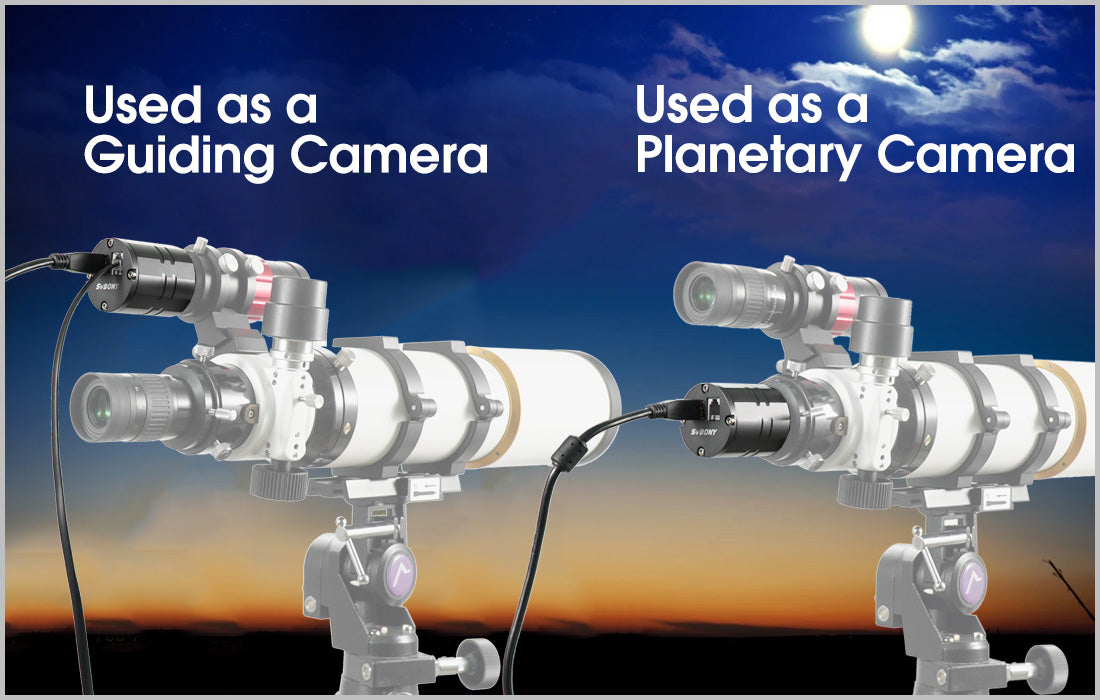

• Auto Guiding: Ideal for use as a guiding camera in combination with telescopes and motorized mounts.

The Svbony SV305M Pro camera is a powerful tool for any serious astrophotographer, offering advanced features, high sensitivity, and great reliability to capture exceptional images of the night sky.
