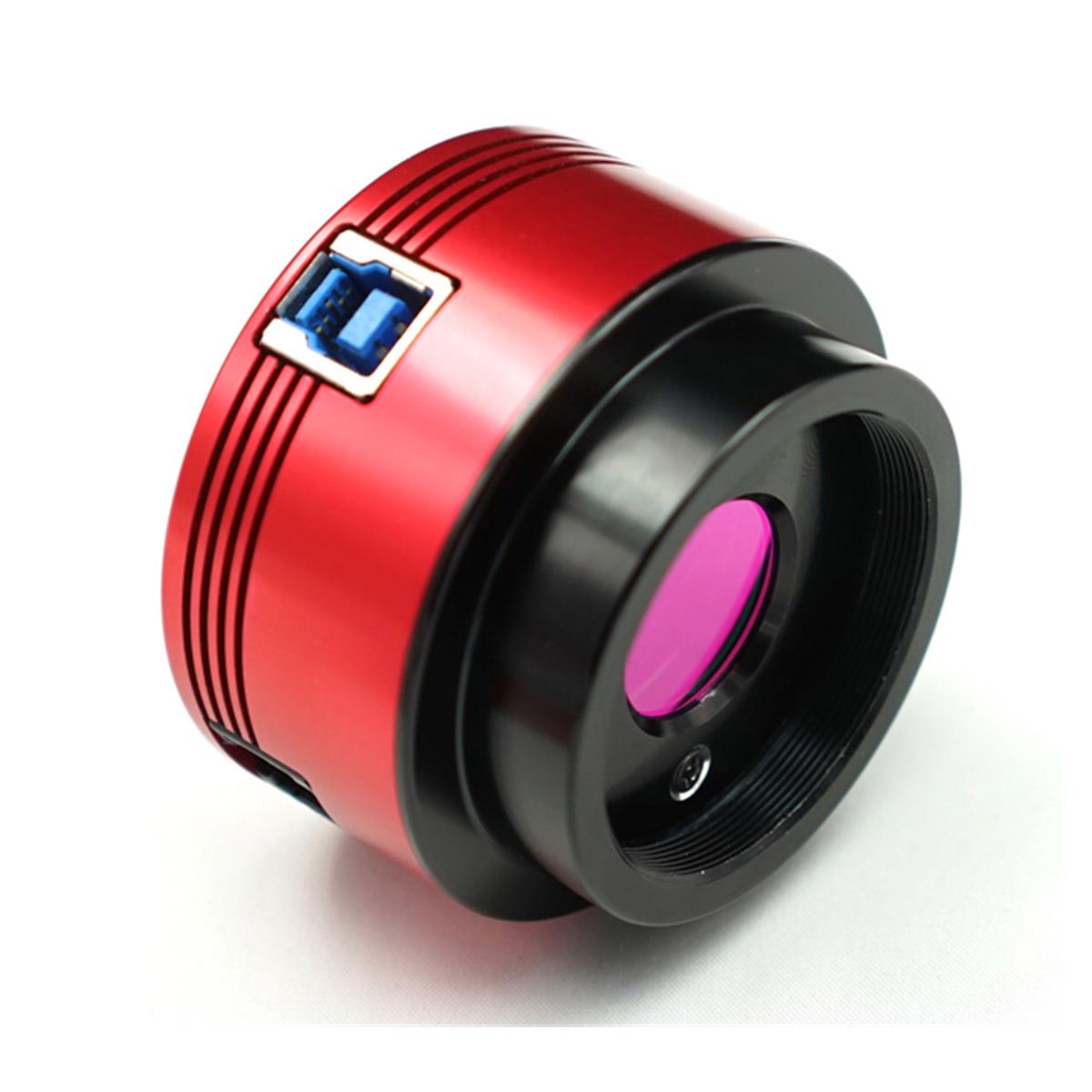

ZWO ASI174MM Monochrome Camera - Zhen Wang Optical

ZWO ASI174MM Monochrome Camera - Zhen Wang Optical

Available within 7 days

€618,90 EUR
€618,90 EUR
On sale Sold out
Shipping cost: ~
Taxes included. Shipping costs calculated at checkout.

Enhance your astronomical observations with the ZWO ASI174MM monochrome camera from Zhen Wang Optical. Equipped with a 2.35 million pixel IMX174 CMOS sensor, this camera is perfect for planetary, lunar imaging and autoguiding. Its high resolution, low noise threshold, and compatibility with various software make it an ideal choice for both amateur and professional astronomers.

  • 1/1.2" monochrome IMX174 CMOS sensor
  • Resolution of 1936 x 1216 pixels
  • Pixel size of 5.86µm
  • Sensor area of 80.80 mm²

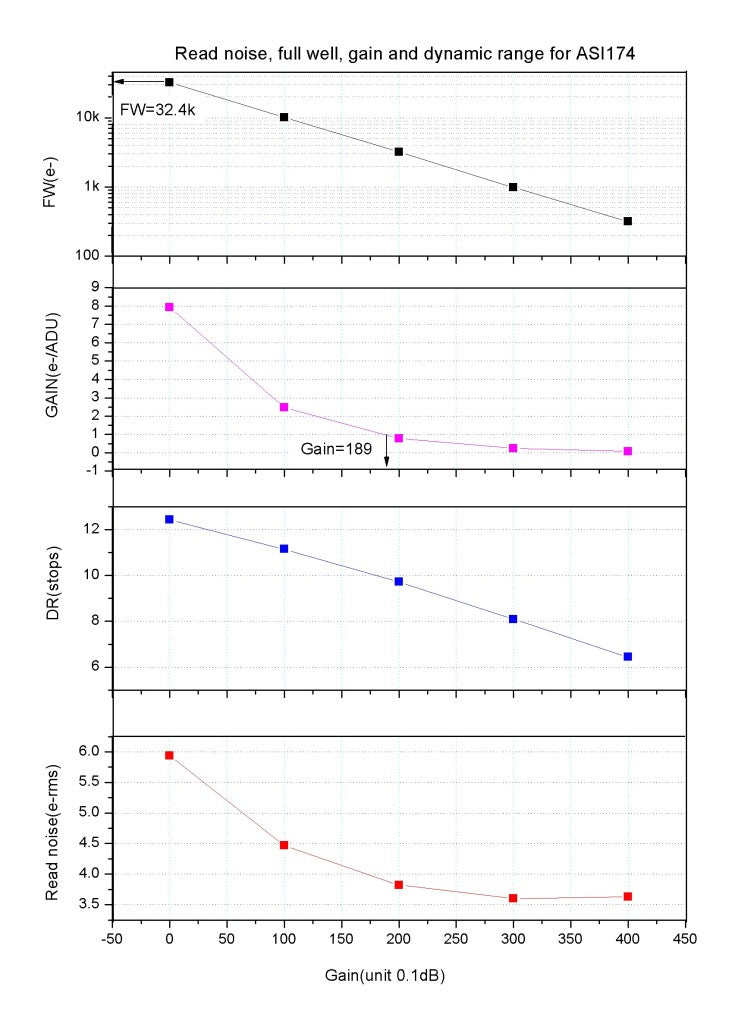

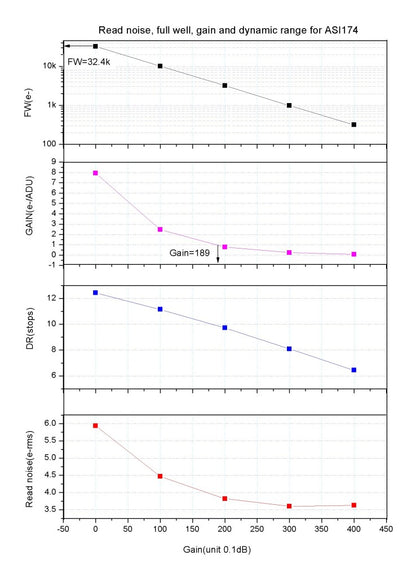

  • Full charge capacity of 32,000 e‑/pixel

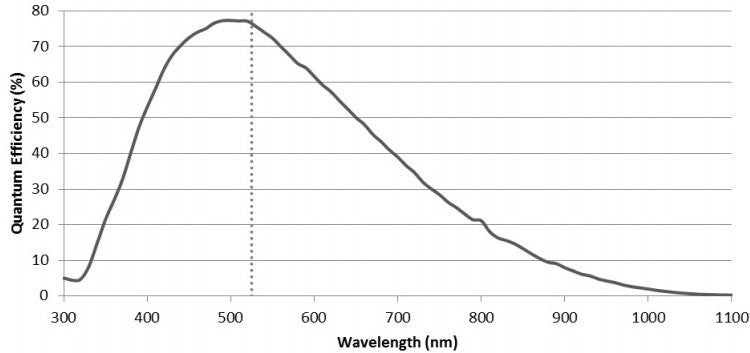

  • Sensitivity (QE peak) of 78%
  • Dynamic range of 12/10 bits
  • Exposure time of 32µs to 1000s
  • High frame rate with various resolutions
  • Readout noise of 3.5 e‑ (gain @30dB)
  • USB 3.0 connection

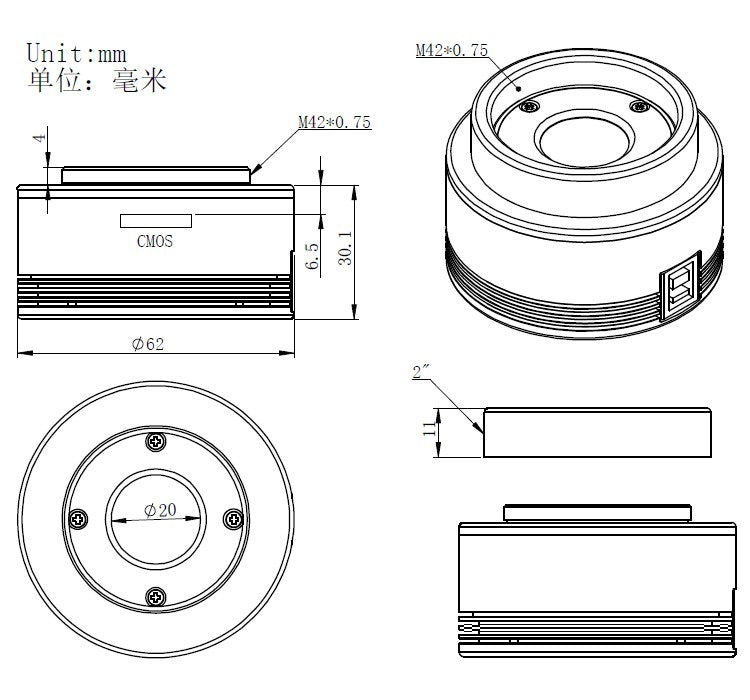

  • M42x0.75 mounting or 50.8mm barrel
  • Back focus of 6.5mm
  • Dimensions of 62mm x 36mm
  • Weight of 140g
  • Operating temperature from -5°C to 45°C
  • Maximum humidity of 20% to 80% in operation
  • High resolution for detailed images
  • Low readout noise for better clarity
  • Compatibility with various operating systems and software
  • Includes essential accessories for easy installation
  • M42 adapter included for versatile use
  • Compatible with Windows, Linux, Arm-linux, Mac OSX
  • ASCOM support for easy integration with astronomy software
  • 1 ZWO ASI174MM monochrome camera (with 50.8mm male barrel)
  • 1 M42 male threaded adapter to 1.25" barrel
  • 1 USB cable
  • 1 ST4 autoguiding cable
